詳細情報 |
|||
| 表面の粗さ: | 1.2μm | 形: | カスタム |
|---|---|---|---|
| 接着の技術: | ろう付けに掃除機をかけなさい | 流体: | 水または適切な冷却剤 |
| 該当する業界: | 機械修理店、エネルギー＆マイニング | 材料: | アルミニウム合金 |
| 表面の平坦性: | 0.005cm/cm以下 | 使用圧力: | 1.2～5バール |
| 単一のパッケージサイズ: | 40×30×25cm | 単一の総重量: | 9.900kg |
| ハイライト: | aluminum liquid cooling plate,braze evaporator cold plate,fluid-cooled battery cooling plate |
||
製品の説明

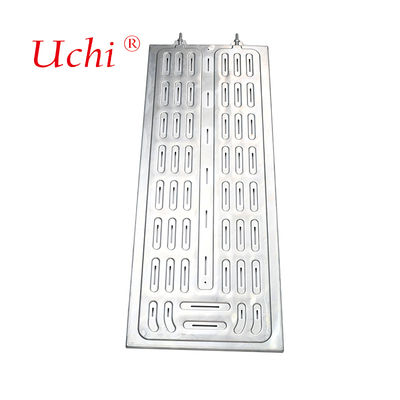

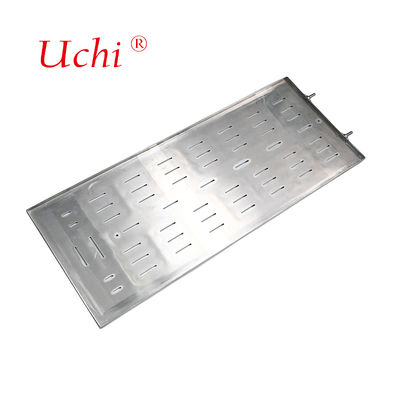

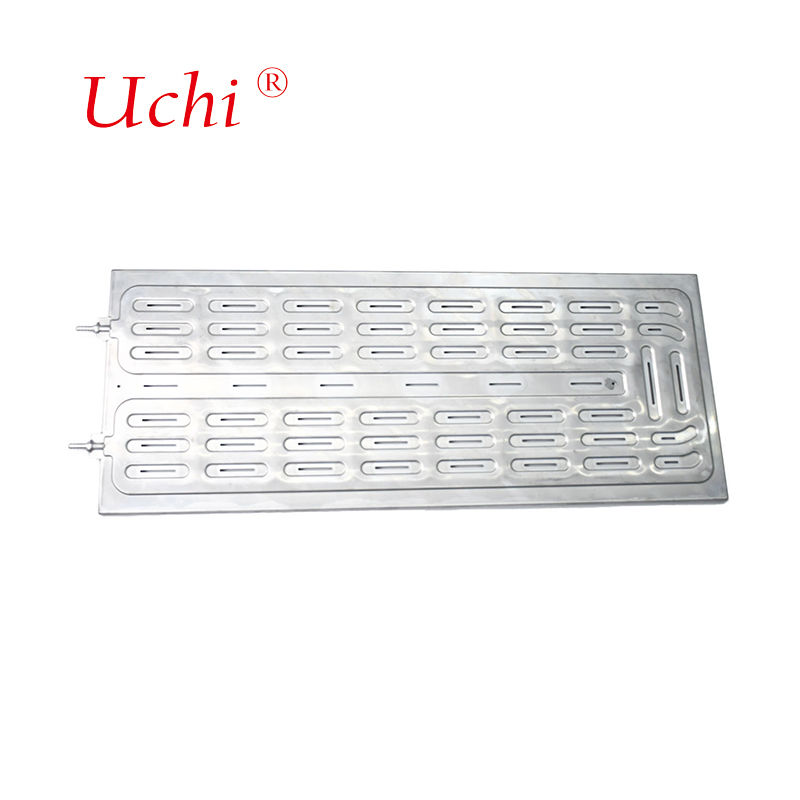

Battery Ess Aluminum Cold Plate Water Cooling System
This Large size EV battery pack liquid cold cooling plate is made of high-quality aluminum alloy, ensuring efficient cooling with a capacity of 200W. It features a surface flatness below 0.005 cm/cm and a smooth surface roughness of 1.2 um, suitable for high-heat applications like EV power battery cooling, lasers, and IGBT modules. The product undergoes rigorous testing including helium leak detection, thermal shock, and flow resistance tests to ensure reliability. Certified with CE, it complies with EU safety standards, providing market access assurance for buyers.
Product Specifications
| No. | Item Description | Content |
|---|---|---|
| 1 | Material | Aluminum alloy (3003, 6061, 6063) |
| 2 | Dimension (L×W×H) | 120×40×12 mm |
| 3 | Cooling capacity | 200 W |
| 4 | Surface roughness | Ra 3.2 μm |
| 5 | Flatness | 0.1 mm |
| 6 | Working Pressure | Minimum 1 bar |
| 7 | Joining Method | Brazing, welding or suitable techniques |
| 8 | Manufacturing technique | CNC machining, extrusion or suitable processes |
| 9 | Recommended Coolants | Deionized Water, Inhibited Glycol/Water, Dielectric fluid |
| 10 | Surface finish | Mill finish, anodization or chemical coating |
| 11 | Place of Origin | China |
| 12 | Packing | Carton box or plywood case with protective films |
Our cold plates are widely used in many more High Power and High Heat Flux applications:
Lasers;
Medical equipment;
EV power battery pack cooling;
Power electronics;
Motor drive devices;
Microwave 5G transmission;
Renewable energy system;
IGBT and Power Semi-Conductor Systems;
Data Centres;
Industrial Power Applications;
Defence Systems;
Avionics;
Fuel Cells;
Traction Systems;
Production Capabilities
25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
