詳細情報 |
|||
| 定格電力: | 80W 最大 | 公称電圧: | DC24V |
|---|---|---|---|
| 証明書: | 3c | 速度を回転させます: | 120回転/分 |
| ホール: | シングル/ダブル | 比率の削減: | 44 |
| 磁性極数: | 二対 | ローターの大きさ: | 3025/3041 |
| ねじり: | 5n.m max | ||
| ハイライト: | Strong compatibility Electric Lifting Desk Motor,MT006 Electric Lifting Desk Motor,Precise control Electric Lifting Desk Motor |
||
製品の説明

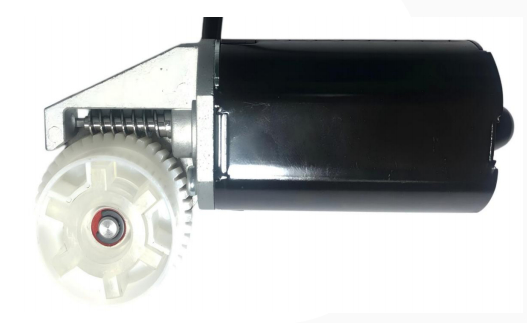

MT006 Electric Lifting Desk Motor Powerful Precise control Strong compatibility
| Voltage | DC24 | DC24 |
| Power | 80 V | 60V |
| Rotate Speed | 120 RPM | 120RPM |
| Torsion | 5N.M | 3N.M |
| Reduction on Ratio | 44 | 44 |
| Hall | Single/Dual | Single/Dual |
| Magnetic Pole Number | Two pairs | Two pairs |
| Rotor Size | 3041 | 3025 |
Product features:
1.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Easy to install, no screws needed for installation.
4.Optional brake at motor tail end.
5.Suitable for supporting heavy-duty electric height-adjustable tables.
Performance
-
Powerful:The MT006 motor typically has a high power output, enabling it to effortlessly drive the lifting and lowering actions of the desk.
-
Smooth Operation:It features advanced gear reduction mechanisms that ensure a smooth lifting process without any jolts or vibrations.
-
Low Noise:The motor operates at a very low noise level, which means it won't disturb the working environment.
