詳細情報 |
|||
| 動作範囲: | 9V〜14V/19V〜26V | 名目: | 12V/24V定数 |
|---|---|---|---|
| 証明書: | 3c | 正価格販売速度r/min: | 16020 RPM Max |
| ロード電流a: | 0.56max | 最大効率での速度: | 13416 RPM Max |
| 最大効率での電流: | 2.35aマックス | 最大効率でのEFF: | 74.6％最大 |
| ハイライト: | Reduction Gearbox Brushless Motor,Electric Shaver Brushless Motor,BLDC-3640 Brushless Motor |
||
製品の説明

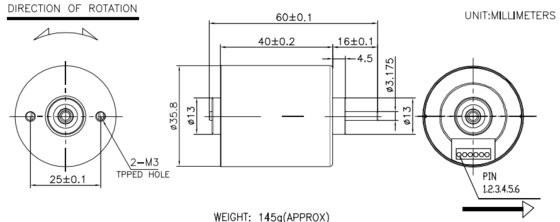

A BLDC-3640 brushless motor is a type of Brushless Direct Current (BLDC) motor. BLDC motors are also known as electronically commutated motors (ECMs). They use permanent magnets and an electronic control circuit to generate rotational motion. The BLDC-3640 specifically refers to a model with a 36mm diameter and a 40mm length.

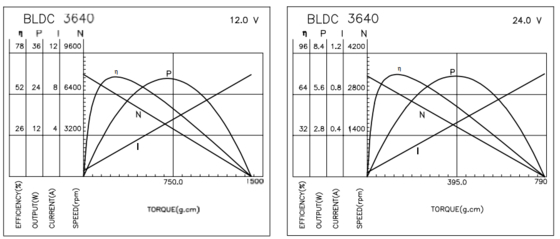

Brushless Motor Technical Data
Typical Application:
1. Electric Shaver
2. Vibrator
3. Home Application
Features:
1.High Efficiency: BLDC motors eliminate brush friction, reducing energy loss and improving power savings. Efficiency can reach 85-90%, significantly higher than traditional brushed motors.
2.Long Lifespan: The absence of brushes prevents wear, extending the motor's lifespan to tens of thousands of hours.
3.High Torque: The BLDC-3640 can provide high torque output, making it suitable for demanding industrial and commercial applications.
