詳細情報 |
|||
| 動作範囲: | 9V〜14V/9V〜16V/9V〜26V | 名目: | 12V/24V定数 |
|---|---|---|---|
| 証明書: | 3c | 正価格販売速度r/min: | 7300 rpm Max |
| ロード電流a: | 0.19マックス | 最大効率での速度: | 6000 rpm Max |
| 最大効率での電流: | 0.86Aマックス | 最大効率でのEFF: | 最大73.6％ |
| ハイライト: | Hair Dryer Brushless Motors,Medical Apparatus Brushless Motors,Electric Shaver Brushless Motors |
||
製品の説明

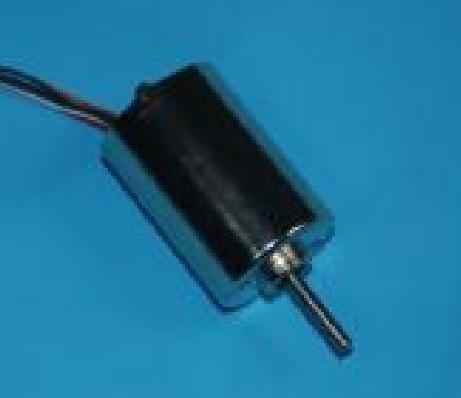

BLDC 2847 Brushless Motors For Electric Shaver Medical Apparatus And Hair Dryer

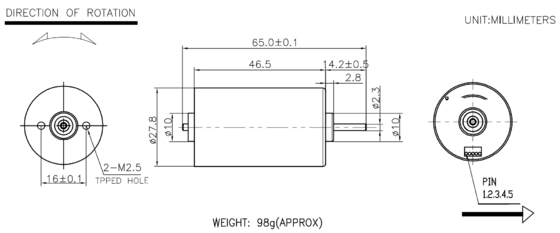

BLDC 2847 brushless motors are a type of brushless DC motor. The “2847” refers to the motor’s dimensions, indicating that the motor has a diameter of 28 mm and a length of 47 mm. Like all brushless DC motors, BLDC 2847 motors do not have brushes and commutators. Instead, they use electronic controllers to switch DC currents to the motor windings, producing rotating magnetic fields that the permanent magnet rotor follows.

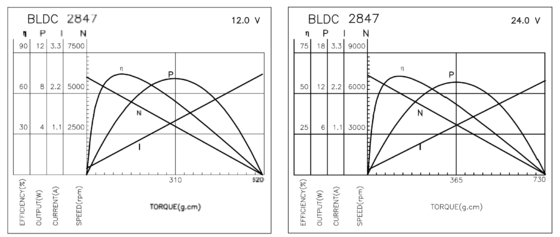

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Electric Shaver
2.Medical Apparatus
3.Hair Dryer
Features
-
High Efficiency and Power Density: BLDC motors are known for their high efficiency, which is due to the absence of brushes that cause friction and energy loss in brushed motors. The 2847 model, despite its small size, can deliver significant power and torque, making it suitable for applications where high power-to-weight ratio is required.
-
Long Lifespan and Low Maintenance: Without brushes and a commutator, BLDC motors avoid the wear and tear associated with these components in brushed motors. This results in a longer lifespan and lower maintenance requirements. The 2847 model, with its compact design, is particularly advantageous in applications where reliability and minimal maintenance are crucial
この製品の詳細を知りたい
