詳細情報 |
|||
| 動作範囲: | 9V〜14V/19V〜26V | 名目: | 12V/24V定数 |
|---|---|---|---|
| 証明書: | 3c | 正価格販売速度r/min: | 11900 RPM Max |
| ロード電流a: | 0.35マックス | 最大効率での速度: | 9065 rpm max |
| 最大効率での電流: | 1.08Aマックス | 最大効率でのEFF: | 最大61.0％ |
| ハイライト: | 3626 Brushless Motors,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care |
||
製品の説明

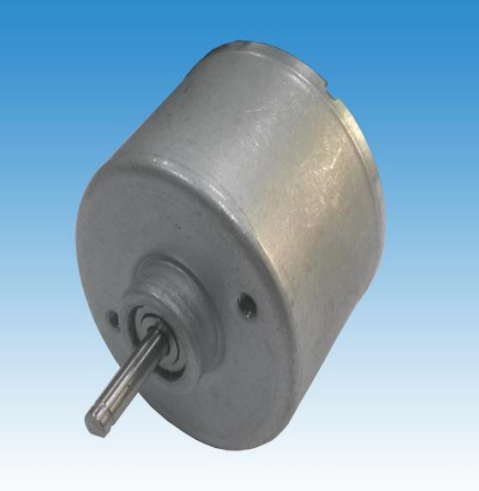

BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care

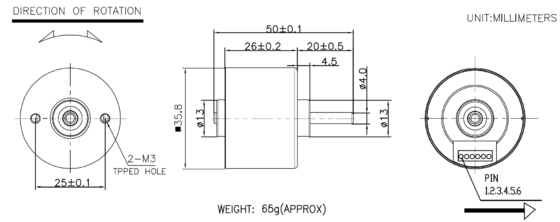

A BLDC 3626 brushless motor is a permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on electronic controllers to manage the flow of current through the motor windings. The "3626" in its name typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "26" represents the length in millimeters. This specific size makes it suitable for a wide range of applications where compactness and high performance are required.

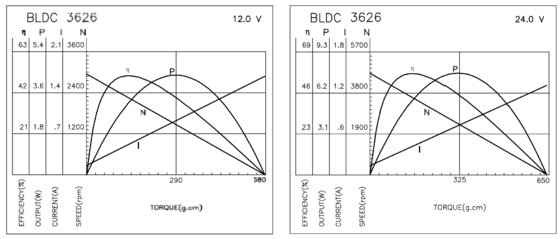

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Power Density: BLDC motors eliminate the need for brushes and mechanical commutators, reducing energy losses due to friction and electrical resistance. This results in higher overall efficiency compared to brushed DC motors.
-
Low Noise and Vibration: The design of BLDC motors minimizes mechanical noise. The lack of brushes also reduces electrical noise, making them suitable for applications where low noise levels are crucial.
