詳細情報 |
|||
| 定格電力: | 80W 最大 | 公称電圧: | DC24V |
|---|---|---|---|
| 証明書: | 3c | 速度を回転させます: | 120回転/分 |
| ホール: | シングル/ダブル | 比率の削減: | 44 |
| 磁性極数: | 二対 | ローターの大きさ: | 3025/3041 |
| ねじり: | 5n.m max | ||
| ハイライト: | Fast Lifting Speed Lifting Desk Motor,MT005 Lifting Desk Motor,High load capacity Lifting Desk Motor |
||
製品の説明

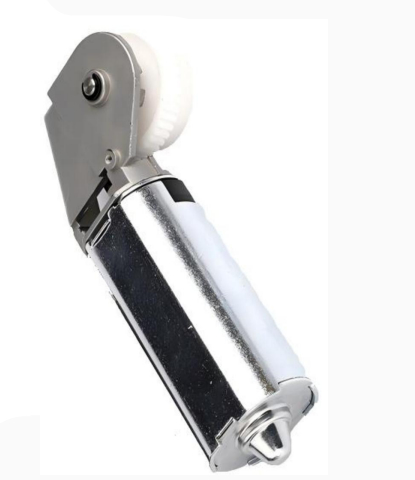

MT005 Electric Lifting Desk Motor High load capacity Fast Lifting Speed
Applications:
Electric Lifting Desk Motors are widely used in various settings where adjustable-height desks are needed. These include:
-
Office Environments: In modern offices, they power adjustable desks that allow employees to switch between sitting and standing positions to improve ergonomics and reduce the risk of sedentary-related health issues.
-
Home Offices: For individuals working from home, these motors enable the creation of versatile workspaces that can be adapted to different tasks and preferences.
-
Educational Institutions: In classrooms and study areas, adjustable desks with electric motors can accommodate students of different heights and promote better posture.
-
Medical Facilities: In examination rooms and therapy areas, adjustable-height desks can be used to ensure that medical professionals can work comfortably and efficiently.
-
Industrial Settings: In manufacturing and assembly areas, adjustable workstations powered by these motors can be tailored to the specific needs of different tasks and workers.
| Voltage | DC24 | DC24 |
| Power | 80 V | 60V |
| Rotate Speed | 120 RPM | 120RPM |
| Torsion | 5N.M | 3N.M |
| Reduction on Ratio | 44 | 44 |
| Hall | Single/Dual | Single/Dual |
| Magnetic Pole Number | Two pairs | Two pairs |
| Rotor Size | 3041 | 3025 |
Product features:
1.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Easy to install, no screws needed for installation.
4.Optional brake at motor tail end.
5.Suitable for supporting heavy-duty electric height-adjustable tables.
この製品の詳細を知りたい
