詳細情報 |
|||
| シリーズ: | 534 | サイズ /寸法: | 22*18mm |
|---|---|---|---|
| 耐性耐性: | ±5％ | 絶縁抵抗: | ≥200MΩ |
| 温度範囲: | -55°C~+125°C | 公称抵抗の範囲: | 100~100KΩ |
| 電気の角度: | 3600°±10° | 特徴: | ワイヤーワンド |
| 定格電力: | 2W (70°C) | ||
| ハイライト: | 10KΩ precision potentiometer,wire wound potentiometer 2W,multi-turn precision potentiometer |
||
製品の説明

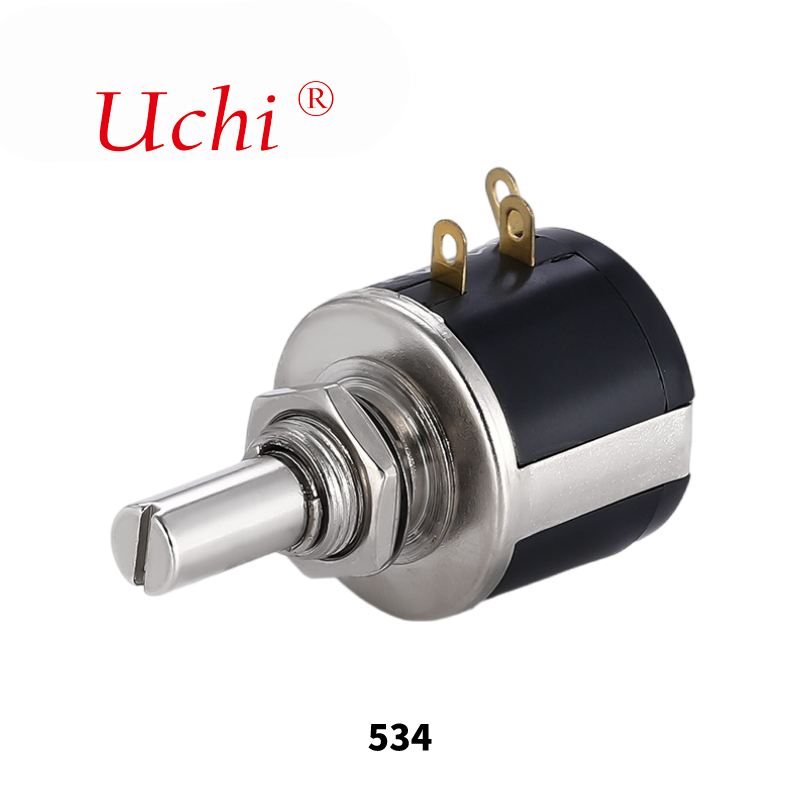

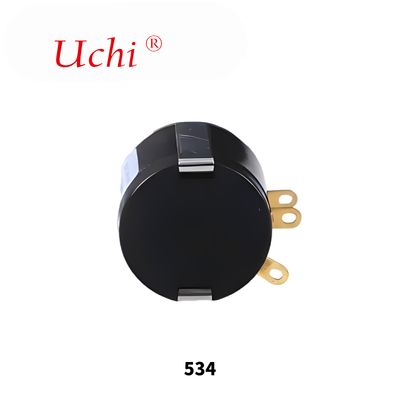

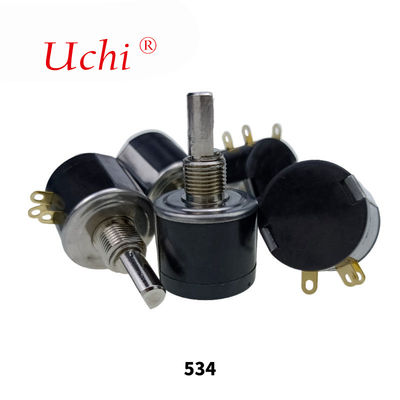

534 Multi-turn Wire Wound Precision Potentiometer 10KΩ 2W
Precision potentiometer/winding potentiometer/multi-turn potentiometer/2W potentiometer. 534 Multiturn Potentiometer Wirewound Potentiometer 10-Turn Potentiometer 2W Potentiometer.
Product Features
- Good thermal resistance, can withstand greater power
- High accuracy and small noise
- Excellent performance at competitive price
- Resistance range: 100Ω to 100KΩ
- Resistance tolerance: ±5%
- Independent linear accuracy: ±0.2%
- Electronic travel: 3600°±10%
- Rated power: 2W
- Rotating life: 1,000,000 rpm
- Operating temperature: -55℃ to +125℃
Product Dimensions
Specification Parameters
| Characteristics | Value |
|---|---|
| Range of nominal resistance | 100~100KΩ |
| Resistance tolerance | ±2%, ±5% |
| Terminal resistance | ≤2%R or 5Ω |
| Peak noise | ≤100Ω |
| Linear accuracy | ±1%, ±0.5% |
| Electrical angle | 3600°±10° |
| Insulation resistance | ≥200MΩ |
| Withstand voltage | 500V (DC or AC peak value) |
Environmental Specifications
| Characteristics | Value |
|---|---|
| Rated power | 2W (70°C) |
| Temperature range | -55°C~+125°C |
| TCR | ±100×10-6/°C |
| Temperature shock | ΔR≤±3%R |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, Electrical break≤100μS |
Physical Characteristics
| Characteristics | Value |
|---|---|
| Total mechanical travel | 3600°±10° |
| Rotational torque | 2~10mN.m |
| Stopper torque | ≥300mN.m |
Applications
This product is widely used in fields such as displays, visual doorbells, visual walkie talkies, mobile phones, cordless telephones, radio frequency heads, electronic tuners, remote controls, instruments, power supplies, communication, medical equipment, power equipment, railway signaling, and aviation.
