詳細情報 |
|||
| 総抵抗の範囲: | B50Ω～B2MΩ A,C:1KΩ～2MΩ | 耐性耐性: | ±10％ |
|---|---|---|---|
| 抵抗 の 終わり: | ≤3Ω | 抵抗 縮小: | B(リニア) A(対数) C(逆対数) |
| 耐絶縁性: | ≥100mΩ | 誘電強度: | AC1000V 1分 |
| 電気の角度: | 280°±10° | ||
| ハイライト: | RV24YN20S adjustable precision potentiometer,IP67 waterproof potentiometer,dust-proof precision potentiometer |
||
製品の説明

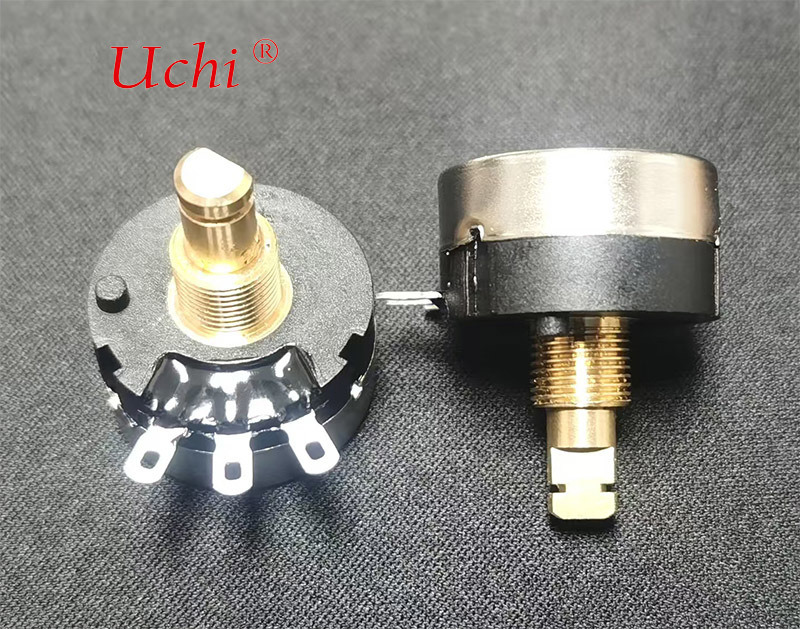

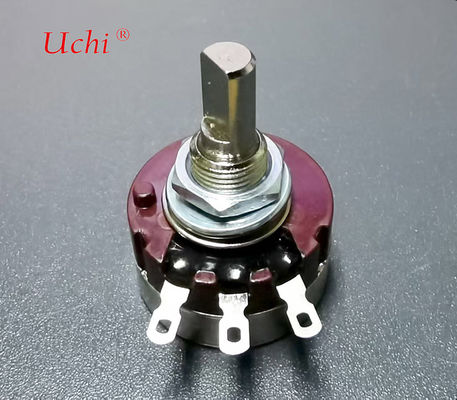

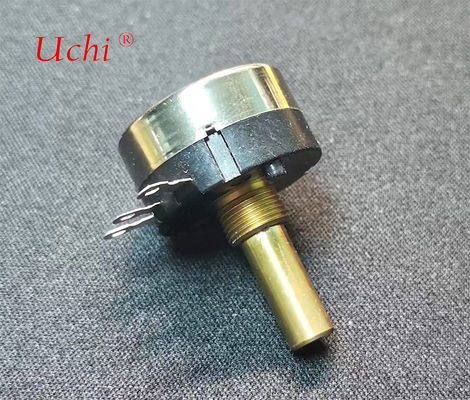

RV24YN20S Adjustable Resistor Precision Potentiometer with IP67 Protection
The RV24YN20S is a fully sealed adjustable resistor precision potentiometer featuring IP67 dust and water protection. This high-performance component offers excellent linear accuracy, long service life, and customizable installation dimensions to meet specific application requirements.
Key Features
- IP67 protection rating (dustproof and waterproof)
- High linear accuracy for precise control
- Long operational lifespan
- Customizable installation dimensions
- Compatible with Japanese TOCOS RV24YN specifications
- Wide range of applications including speed regulation, dimming, frequency converters, and medical equipment
Technical Specifications
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Rotation stopper strength | 900N・m min (9.18kgf・cm min) |
| Total rotation angle | 300°±5° |
| Rotational torque | 5-30mN・m (51-306gf・cm) |
| Key push-pull strength | Min: 8Kgf |
| Terminal strength | 5N for 1 minute |
Electrical Characteristics
| Parameter | Value |
|---|---|
| Total resistance | 1KΩ-2MΩ |
| Total resistance tolerance | ±10% |
| Residual resistance | 3Ω Max |
| Rated power at 40℃ | B: 0.4W (R≤1kΩ), 0.3W (1kΩ |
| Insulation resistance | 100MΩ min (DC 1,000V) |
| Dielectric proof | AC 1,000V 1 minute |
| Electrical angle | 280°±10° |
Environmental Performance
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C to +85°C |
| Soldering performance | 235°C 5sec |
