詳細情報 |
|||
| 供給電圧: | 6V | VIN の差: | ±2.5V |
|---|---|---|---|
| 入出力ピンの電圧: | 。 (-VS) - 0.3V ～ (+VS) + 0.3V | 差動入れられた電圧: | 1.5V |
| 接合部温度: | +150℃ | ストレージ温度範囲: | -65℃への+150℃ |
| 鉛の温度（、10sはんだ付けすること）: | +260℃ | HBM: | 3000V |
| mm: | 400V | 動作温度範囲: | -40℃〜 +85℃ |
製品の説明

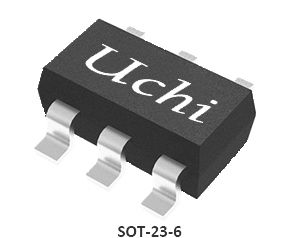

Micro-Power, CMOS Input,RRIO, 1.4V, Push-Pull OutputComparator With Latch Enable Integrated Circuit IC
The SGM8703 is a single, rail-to-rail input CMOScomparator with typical 300nA ultra-low power supplycurrent. The comparator operates from a wide range of1.4V to 5.5V supply voltage, and is guaranteed tooperate at 1.4V, 2.5V and 5.0V. This feature is suitablefor battery-powered applications.The SGM8703 is optimized for micro-power, single-supplyoperation. The push-pull output stage supportsrail-to-rail output swing and allows for operation withabsolute minimum power consumption when drivingany capacitive or resistive load. The SGM8703 alsohas a latch enable input pin (LE ).The SGM8703 is available in a Green SOT-23-6package. The small package makes this device idealfor use in hand-held electronics and mobile phoneapplications. It is rated over the -40°C to +85°Ctemperature range.
Key Features
● Ultra-Low Quiescent Current:300nA (TYP) at VS = 1.4V
● Wide Single-Supply Voltage Range: 1.4V to 5.5V
● Typical 6μs Propagation Delay at VS = 1.4V
● Latch Function Included
● Rail-to-Rail Input and Output
● Push-Pull Output Current Drive:19mA (TYP) at VS = 5V
● -40℃ to +85℃ Operating Temperature Range
● Available in a Green SOT-23-6 Package
Applications
Portable and Battery-Powered Applications
Alarm and Surveillance Circuits
Mobile Phones
RC Timers
Hand-Held Electronics
Window Detectors
IR Receiver
Alarm and Surveillance Circuits
Mobile Phones
RC Timers
Hand-Held Electronics
Window Detectors
IR Receiver
Pin Configurations
Product Selection Guide
| Amplifiers per Package | Part Number | IQ/Amp Typ (μA) |
Latch
Enable
|
VCC(V) |
Enable
Max @25℃(mV) |
tPD, H to L
@VCC = 5V(μs) |
tPD, L to H
@VCC = 5V
(μs)
|
Logic
Output |
Reference
Output
(V) |
Rise Time
@VCC = 5V
(ns) |
Fall Time
@VCC = 5V(ns) |
Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SGM8701 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-5,SC70-5
|
Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8702 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Open-Drain (PFET)
|
NA | 85 | NA |
SOT-23-5,SC70-5
|
Ultra Low Power, PFET Open-Drain, Small Package
|
| 1 | SGM8703 | 350 | Yes | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-6
|
Latch Enable, Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8704 | 350 | Yes | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull & Invert
|
NA | 85 | 60 |
SOIC-8,MSOP-8
|
Latch Enable, Ultra Low Power, Push-Pull and Inverter
|
| 2 | SGM8705 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOIC-8,MSOP-8
|
Ultra Low Power, Push-Pull
|
| 1 | SGM8706 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull
|
1.2 | 40 | 30 |
SOIC-8,SOT-23-8,SOT-23-6
|
Internal Reference, Latch Enable, Ultra Low Power, Push-Pull
|
| 1 | SGM8707 | 350 | No | 1.4~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
SOT-23-5,SC70-5
|
Ultra Low Power, Push-Pull, Small Package
|
| 1 | SGM8708 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull & Invert
|
1.2 | 40 | 30 |
SOT-23-8,SOIC-8
|
Internal Reference, Latch Enable, Ultra Low Power, Push-Pull and Inverter
|
| 1 | SGM8709 | 350 | No | 1.4~5.5 | 3 | 5 |
Open-Drain (NFET)
|
NA | NA | 36 |
SOT-23-5,SC70-5
|
Ultra Low Power, NFET Open-Drain, Small Package
|
|
| 1 | SGM8710 | 2300 | Yes | 1.8~5.5 | 3 | 5.6 |
Open-Drain (NFET)
|
1.2 | NA | 30 |
SOT-23-8,SOT-23-6
|
Internal Reference, Latch Enable, Ultra Low Power, NFET Open-Drain
|
|
| 1 | SGM8711 | 2300 | No | 1.8~5.5 | 3 | 5.6 | 30 |
Push-Pull
|
1.2 | 40 | 30 |
UTDFN-1.6×1.6-6L
|
Tiny Package, Internal Reference, Ultra Low Power, Push-Pull
|
| 2 | SGM8712 | 350 | No | 1.8~5.5 | 3 | 6 | 33 |
Push-Pull
|
NA | 85 | 60 |
MSOP-8
|
Ultra Low Power, Push-Pull
|
| 1 | SGM8713A-1 | 300 | No | 1.6~5.5 | 10 |
Push-Pull
|
7 | 15 |
XTDFN-0.8×0.8-4L
|
Small Size, Nano Power, Push-Pull
|
|||
| 1 | SGM8713B-1 | 300 | No | 1.6~5.5 | 10 | 3 | 5 |
Open-Drain (NFET)
|
15 |
XTDFN-0.8×0.8-4L
|
Small Size, Nano Power, Open-Drain
|
||
| 1 | SGM8714A-1 | 300 | No | 1.6~5.5 | 10 |
Push-Pull
|
6 | 6 |
XTDFN-1×1-6L
|
Small Size, Nano Power, Push-Pull
|
|||
| 1 | SGM8714B-1 | 300 | No | 1.6~5.5 | 10 | 4 | 6 |
Open-Drain (NFET)
|
6 |
XTDFN-1×1-6L
|
Small Size, Nano Power, Open-Drain
|
Integrated circuits (ICs) serve as the foundation of modern electronics, offering small size, low power consumption, strong performance and high reliability. They are widely used in consumer electronics, industrial applications, communications, automotive electronics, medical equipment, and aerospace/defense systems.
Uchi Electronics provides high-performance analog and mixed-signal processing solutions for industrial automation, new energy, automotive, communications, computing, consumer electronics and medical equipment applications.
This solution demonstrates the application of integrated circuits in network hard disk recorders. For assistance selecting the right product, please contact our technical support team.
